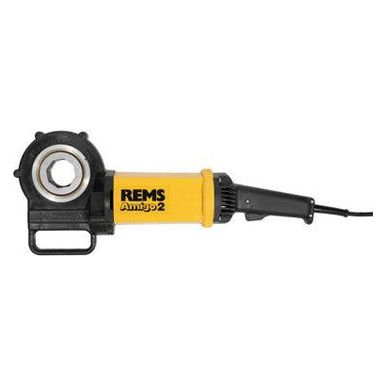

REMS R220 Amigo 2 Electric Hand Threader
The REMS R220 Amigo 2 Electric Hand Threader is a powerful, easy-to-use tool capable of threading pipes up to 2" and bolts up to 30mm. Ideal for renovations, it features a unique support bracket that eliminates the need for a vice and allows for easy maneuverability in tight spaces. Using a single type of quick-change die head simplifies restocking. The machine is driven by a 1700W maintenance-free motor with a 30% power boost from automatic carbon brush adjustment, achieving threading speeds of 30-18 rpm. It includes a safety tip switch and offers reliable quick-change die heads made from high-quality steel for excellent cutting performance and long life. Its design ensures secure clamping, precise pipe centering, and clean threading, with efficient chip flow through widened chip holes.
Key Details
Quick Specs:
- Pipe Thread Set: Set M 20-25-32-40-50 (M x 1.5)
- Pipe Thread Size: 16mm-40mm
- Bolt Thread Size: 6mm-30mm
- Weight: 22.2000kg
- Length: 700mm
- Width: 300mm
- Height: 160mm
Product Contents:
- 1 x RM540022 REMS R220 Amigo 2 Electric Hand Threader
Full Description
The REMS R220 Amigo 2 Electric Hand Threader is an extremely strong and powerful, easy-to-operate electric tool able to thread thread pipes up to 2". It includes a unique support bracket without the need for a vice. It's the ideal tool for renovations and other applications that require powerful and reliable threading strength. This machine easily produces 16mm-50mm pipe threads and 6mm-30mm bolt threads and all with perfect seating of quick-change die heads.
Extremely strong and impressively fast, the R220 Amigo 2 threader is incredibly easy to maneuver, which is perfect when working in confined spaces. It only requires one type of small, compact quick-change die head and one type of die so that restocking is easy and efficient. The solid, easy-to-use support bracket supports the die stock against torque in both directions. Secure clamping is accomplished through an angular clamping spindle with a self-supporting effect. The Die Stock is easily mounted onto the support bracket and pipe without fuss.
The Amigo 2 drive is powered by a solid and maintenance-free gear universal motor, 1700W, with a 30% power increase thanks to an automatic carbon brush adjustment while changing the direction of rotation. It has a fast threading time of 30-18 rpm and includes a safety tip switch.
The reliable quick-change die heads offer proven technology and have been manufactured from high-quality special-grade steel and precise machining which ensures an excellent start-cutting performance and easy threading. Apart from no stalling of dies, the Amigo 2 gives long, precise pipe guidance for perfect pipe centering. The chip holes which become wider at the outside enable good chip flow and clean threads. Dies in a high-quality special-grade steel, fully tempered and hardened, for extremely long die life.
